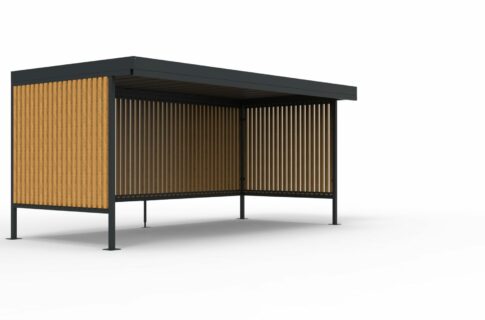

BEAULIEU wood - Trolley shelter

Combining design and sturdiness, theBeaulieu Bois cart shelter is the ideal solution for protecting your carts while adding an aesthetic touch to your site. Its galvanized steel structure guarantees sturdiness and longevity.
The wooden batten cladding and flat roof make this caddy shelter particularly elegant, bringing a modern touch to your parking lot.
Don’t forget to equip it withaccessories: waste garbage can, ashtray…

Wooden laths
L 4.50m x l 2.45m x h 2.10m

Technical Data Sheet Get a catalog

Ask for a quote

Présentation
Features
Related products
Projects

BEAULIEU wooden shelter The wooden trolley shelter that combines design and sturdiness

Assets made for you

Wood cladding

For a trendy, natural look
Flat roof

for more modernity
Elegant design

contemporary styling
Rainwater harvesting

Via gutters, then drained into the poles

Expert's voice

In keeping with the natural, trendy spirit of its wood cladding, this cart shelter can also be fitted with laser-cut sheet metal with your logo.

François Sales consultant

Features

Abri Plus manufacturing process

Construction

CONSTRUCTION

– Galvanized steel tube frame
– 80 x 80 mm steel tube posts
– Bottom rails: 60 x 60 x 2 mm
– 2.5 mm thick galvanized sheet metal perimeter panels with rainwater collection in the posts
– Inner side guides, shelter bottom stop, chain starting bar, in 50 x 30 x 2 mm galvanized steel tube
– Adjustable feet on 200 x 200 x 10 mm plates
– Assembly screws in A2-class stainless steel

COVER
– Sheet metal roof Hacierba 3.333.39 T

CLADING
– Wooden batten 60×22 mm

FINISH
– Thermosetting polyester paint baked at 200°C, UV-resistant.
– Choice of RAL colors.

FIXING
– Fastened with M12/65 anchor screws to concrete slab or concrete studs.
– Attached with M12/120mm threaded rods to asphalt mix at least 7 cm thick.
