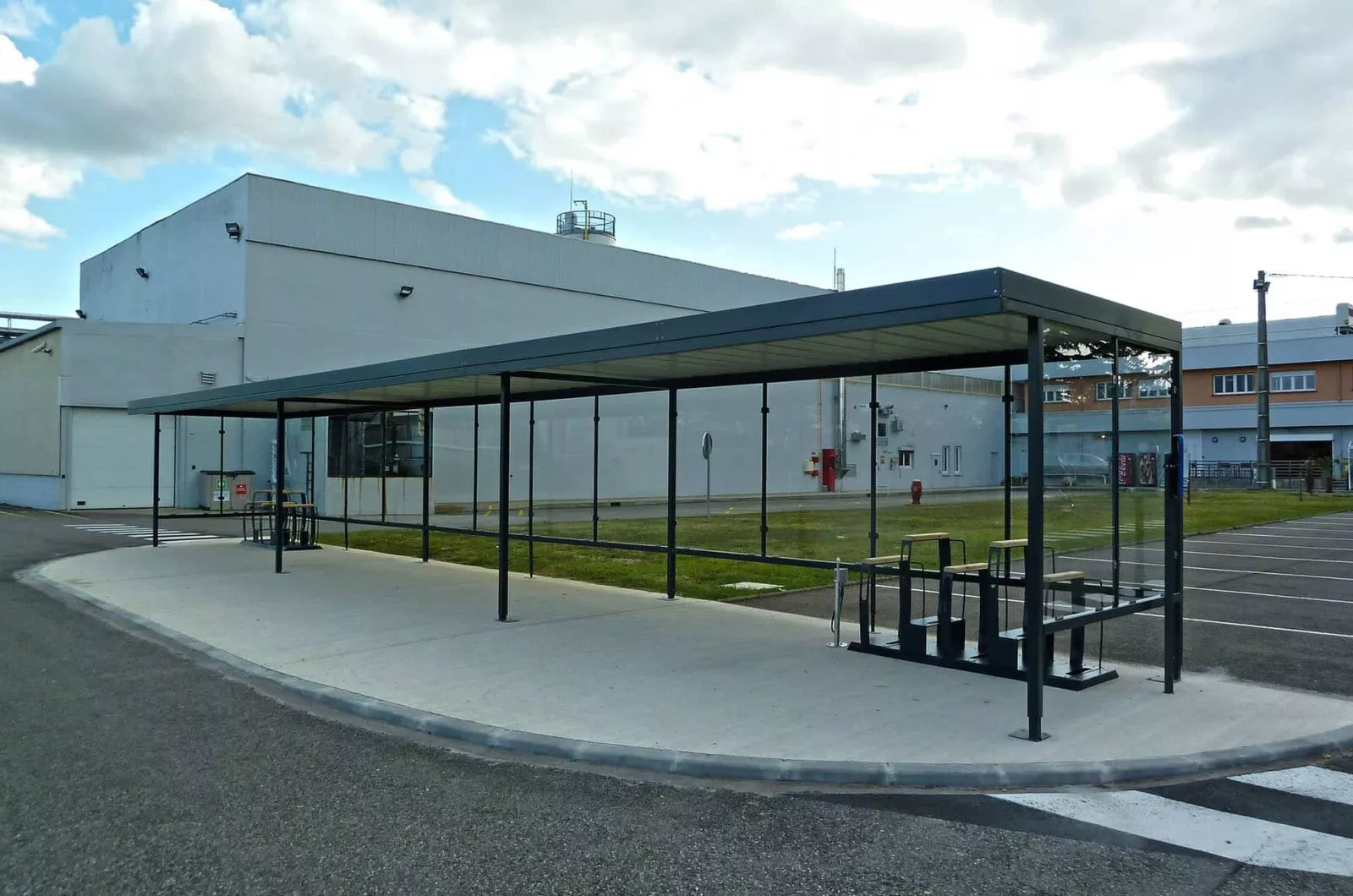

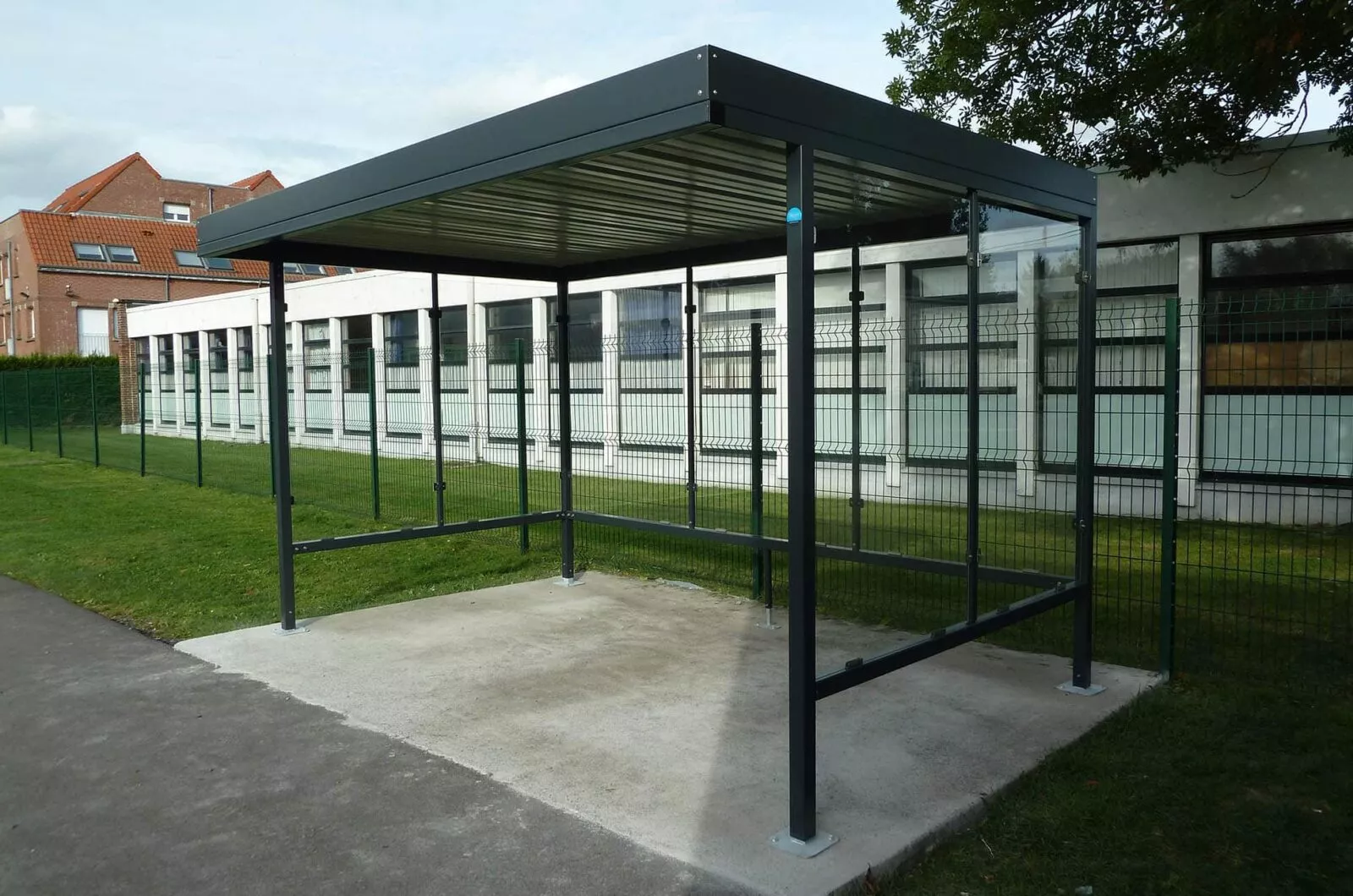

Galvanized steel tube frame
Posts, stringers and cross-members: 60 x 60 x 2 mm
Galvanized sheet metal panel to collect P.E. in posts
Adjustable feet on base plate: 200 x 200 x 5 mm
Assembly screws in A2-class stainless steel
Cover
Haciero 3.333.39T sheet metal roofing, painted on one side (white on the outside, other colors available on request from the Hairplus 25 colour chart – longer lead times).
Finish
Thermosetting polyester paint baked at 200°C, UV-resistant
Choice of color from RAL range (184 colors to choose from)
Cladding

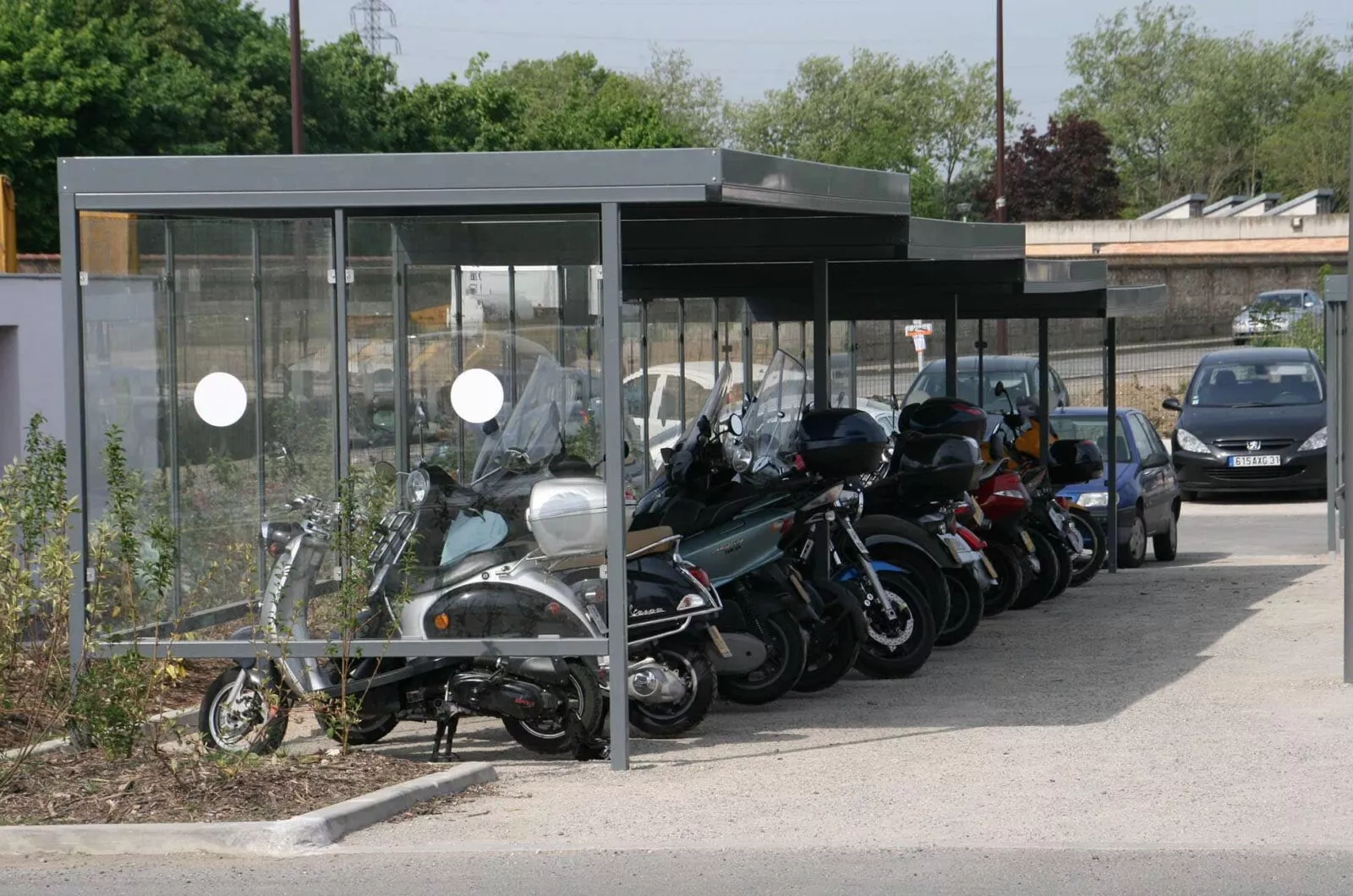

5 mm clear “securit” tempered glass
or pre-painted Hacierba 11.1000.8.B sheet metal cladding (choice of colors)
Fasteners
Fastened with M12/65 anchor screws to concrete slab or concrete blocks
Chemical resin fastening with 2 M12/120 mm threaded rods on 5 to 7 cm asphalt mix
Warranty
5-year warranty, parts and labor, excluding vandalism, accident or storm (wind > 130 km/h)
30 years of experience
Eco-design
Made in France
